Description
OMP plumbed in fire systems – New updated models

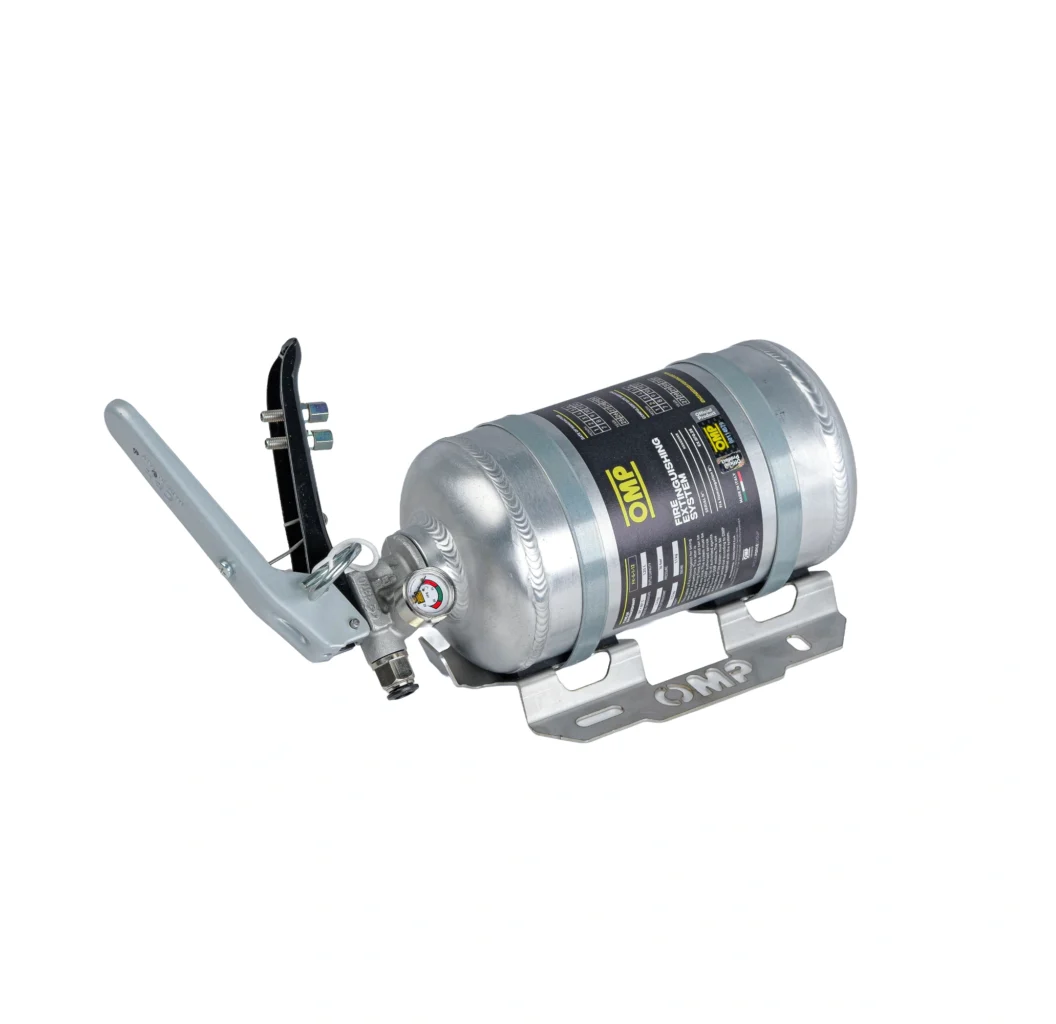

Mechanical fire system OMP 1.4Kg
Fire extinguishing system manually activated engineered for formula and prototype cars requiring a compact and high-performance fire suppression system. CMFAL6 system make use of FK-5-1-12 clean agent. The fluid stored in a lightweight 100 mm aluminium bottle, it delivers fire suppression performance through a precision-engineered nozzle and tubing layout to maximize performance. Mechanic valve in aluminium.
Designed for installations where space and weight are critical. Fixing brackets, clamps, tubing and connection included.
- Suitable for single seater cars
- Suitable for electric and hybrid cars
FK‐5‐1‐12 is a colorless, clear liquid. It is stored as a liquid and dispensed into the hazard as an electrically non‐conductive gaseous vapor that is clear and does not obscure vision. It leaves no residue and has acceptable toxicity for use in occupied spaces at design concentration. FK-5-1-12 extinguishes fires by removing heat. All fires need heat, oxygen, and a fuel source to continue to burn. By removing any of these three elements, you can extinguish the fire.
Bottle length
296mm
Total length
303mm
Total weight
3,55kg ±5%
Parts included
- 2x Aluminium piping 8mm [CD0-0323-A01]
- 1x Aluminium piping 6mm [CD0-0323-B01]
- 2x Sheath 10mm [CD0-0324-A01]
- 1x Sheath 8mm [CD0-0324-A03]
- 6x Atomizer nozzle – 5 for engine and 1 for cockpit [CD0-0393-A01]
- 3x 8mm T connection [CD0-0392-A02]
- 2x 8mm 90° connection [CD0-0391-A02]
- 1x 6mm 90° connection [CD0-0391-A03]
- 1x Pipe reduction 6-8mm [CD0-0399]
- 2x 8mm T connection [CD0-0390-B01]
- 1x Pull handle cable 3,2m [CD0-0335]
- 1x Pull handle cable 2m [CD0-0336]
- 1x Bracket and clamps [CD0-0561]
- 2x Sticker [XMC-855]
